When adding new points or moving existing points the sketching software helps the user by snapping lines / points to align with existing points on the sketch.
Snap to Sensitivity setting

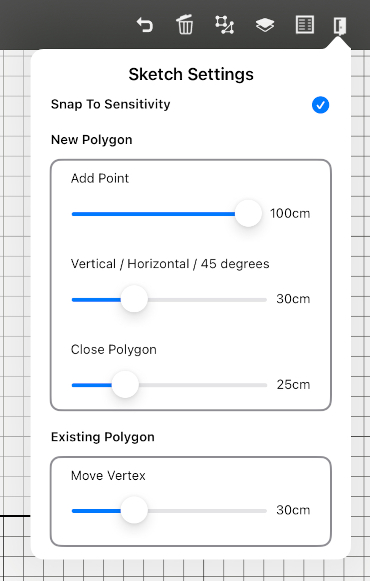

Clicking on the close sketch and selecting Settings displays a popup that shows the Snap To Sensitivity distance. This is a slider that can be adjusted to ensure the snap to feature is not accidentally applied when not required.
Adding new points

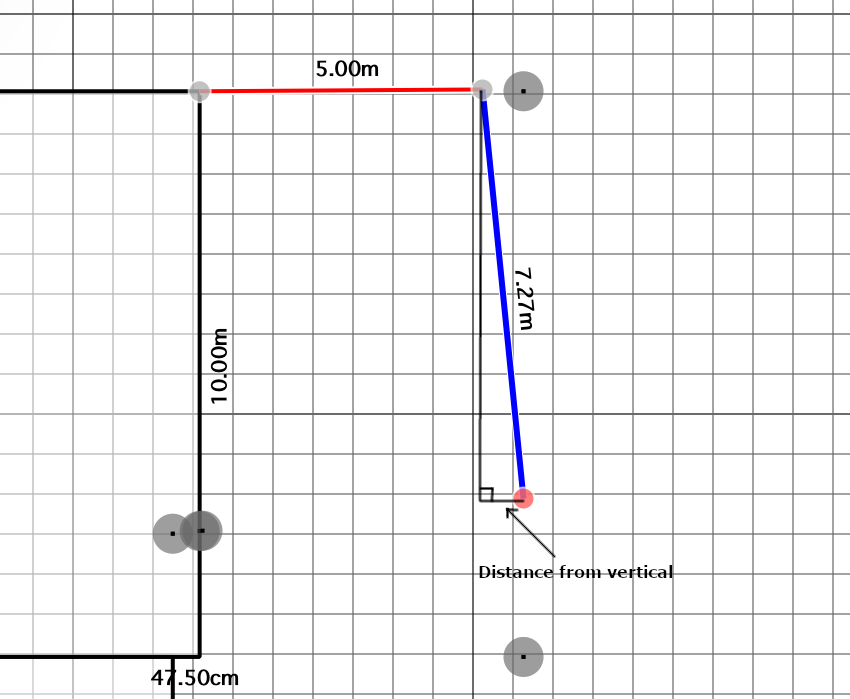

When adding new points the line being created will snap to Vertical / Horizontal / 45 degrees if it is within the Snap To Sensitivity distance or vertical / Horizontal or 45 degrees
Adding the first point of a new room

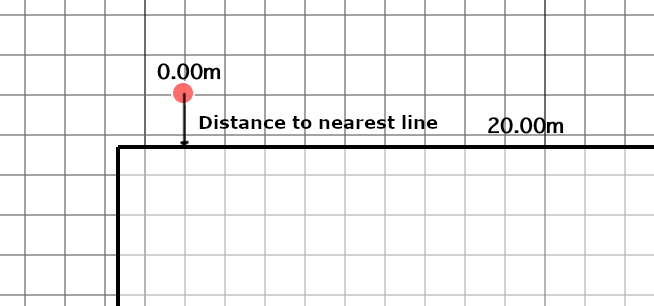

When adding the first point of a new room, if the point is close to the corner of a room, it will be placed at that corner. If the new point is close to a line it will placed at the nearest point on the line.
Closing an existing room

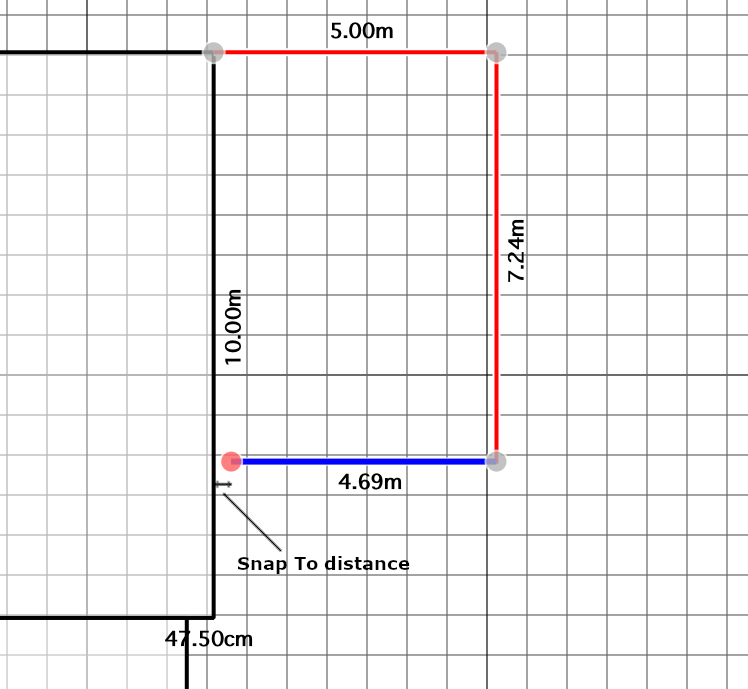

When adjusting a line length, if the end point of the line is within the Snap To Sensitivity distance then the room will be automatically closed.
Move Vertex

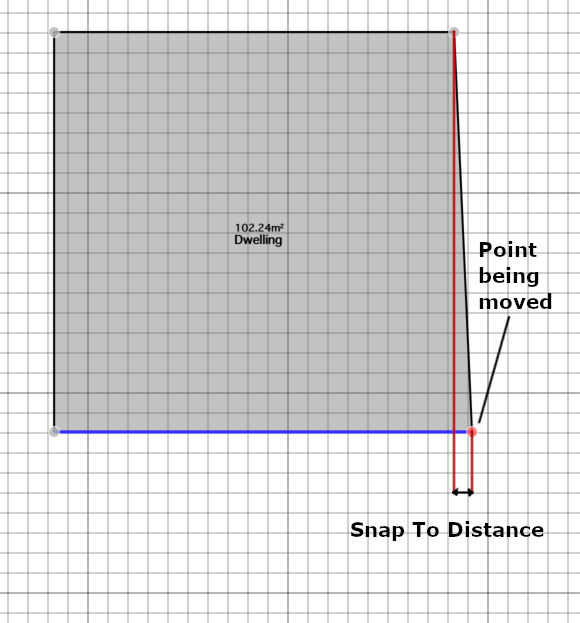

When moving an existing vertex the highlighted line being moved will snap to Vertical / Horizontal / 45 degrees if it is within the Snap To Sensitivity distance or vertical / Horizontal or 45 degrees
